Two-server deployment scenario.
When using KATA and KEDR functionality, you can install the Kaspersky Endpoint Agent program on corporate LAN computers. When using KATA functionality, the Kaspersky Endpoint Agent program is not installed.
When using this deployment scenario, the Central Node and Sensor components are installed on the same server or cluster. This server or cluster receives traffic, performs an initial analysis of traffic and a deeper analysis of extracted files. Based on the scan results, components detect signs of targeted attacks on the organization's IT infrastructure.
The Sandbox component is installed on the other server.

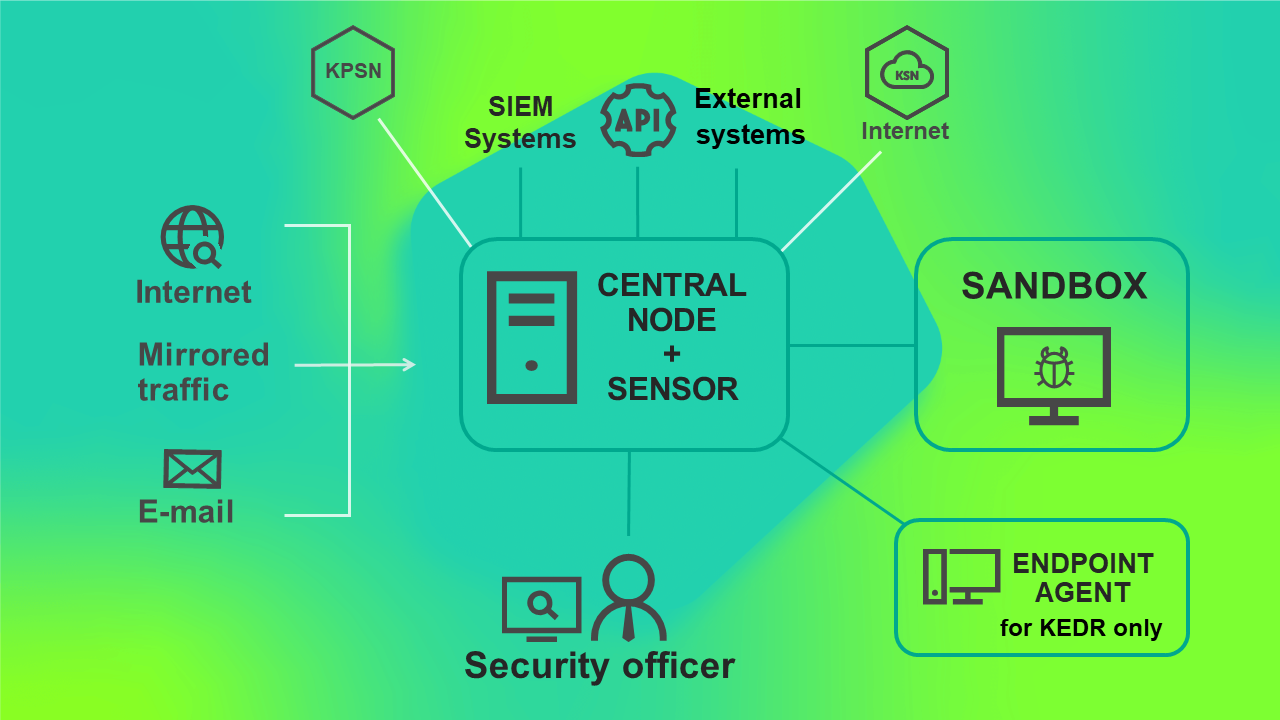

The scenario for program operation when deployed on two servers is presented in the figure below.
Program operating scenario when deployed on two servers
