Integration with Jenkins

Kaspersky Endpoint Security supports integration with Jenkins. Jenkins Pipeline plug-ins can be used to scan Docker images at different stages. For example, you can scan Docker images in a repository during the development process or before publishing.

To integrate Kaspersky Endpoint Security with Jenkins:

1. Install Kaspersky Endpoint Security on a Jenkins node.
2. Install Docker Engine on a Jenkins node.

   For details, please refer to the Docker Engine documentation.

3. Grant the Kaspersky Endpoint Security administrator privileges to the Jenkins user:

   kesl-control --grant-role admin <Jenkins user name>

4. Add a Jenkins user to the docker group:

   sudo usermod -aG docker <Jenkins user name>

   Usually the jenkins name is used.

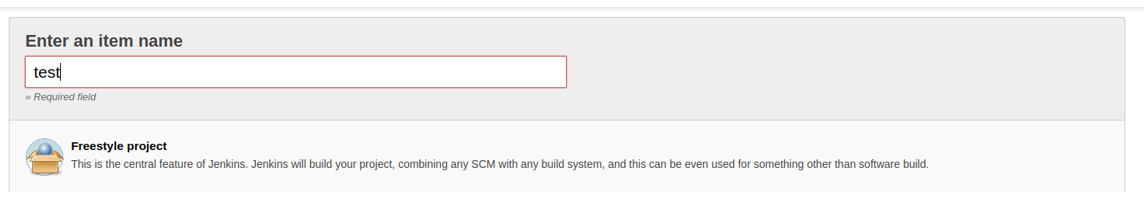

5. In Jenkins, create a new build job with the test name (New Item → Enter an item name).

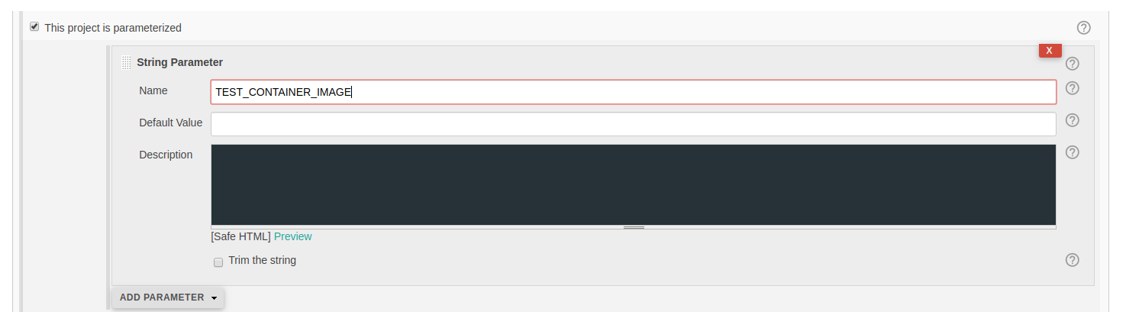

6. Configure your project, according to your needs. It is assumed that as a result, you have an image or a started container that you need to scan.
7. To start the Docker container, add the following script to the Jenkins build procedure. If you use Jenkins plug-ins or another way to start Docker containers, save the ID of the running Docker container to the file /tmp/kesl_cs_info, for further scanning:

   TMP_FILE="/tmp/kesl_cs_info"

   EXIT_CODE=0

   echo "Start container from image: '${TEST_CONTAINER_IMAGE}'"

   CONTAINER_ID=$(docker run -d -v /storage:/storage ${TEST_CONTAINER_IMAGE} /storage/docker_process.sh)

   if [ -z "${CONTAINER_ID}" ] ; then

   echo "Cannot start container from image ${TEST_CONTAINER_IMAGE}"

   exit 1

   fi

   echo "${CONTAINER_ID}" > ${TMP_FILE}

   exit ${EXIT_CODE}



8. After building the artifacts, add the following script to the steps to build the jenkins.

   This script supports one container for scanning. If necessary, modify the script according to your needs.

   TMP_FILE="/tmp/kesl_cs_info"

   EXIT_CODE=0

   if [ ! -f "${TMP_FILE}" ] ; then

   echo "Cannot find temporary file with container ID: '${TMP_FILE}'"

   exit 1

   fi

   CONTAINER_ID=$(cat ${TMP_FILE})

   if [ -z "${CONTAINER_ID}" ] ; then

   echo "Cannot find container ID in the temporary file: '${TMP_FILE}'"

   exit 1

   fi

   echo "Start anti-virus scan for: '${CONTAINER_ID}'"

   THREATS_AMOUNT=$(kesl-control --scan-container ${CONTAINER_ID}|grep 'Total detected objects'|awk '{print $5}')

   if [ "${THREATS_AMOUNT}" != "0" ] ; then

   echo "ATTENTION! ${THREATS_AMOUNT} threats detected at: '${CONTAINER_ID}'"

   EXIT_CODE=1

   else

   echo "Not threats found"

   fi

   echo "Remove container: {${CONTAINER_ID}}"

   docker kill ${CONTAINER_ID}

   docker rm -f ${CONTAINER_ID}

   rm -f ${TMP_FILE}

9. To scan a Docker image from a repository, use the following script:

   DOCKER_FILE=https://raw.githubusercontent.com/ianmiell/simple-dockerfile/master/Dockerfile

   DOCKER_FILE_FETCHED=$$.Dockerfile

   TEST_IMAGE_NAME=test_image

   echo "Build image from ${DOCKER_FILE}"

   curl ${DOCKER_FILE} -o ${DOCKER_FILE_FETCHED}

   if [ -f ${DOCKER_FILE_FETCHED} ] ; then

   echo "Dockerfile fetched: ${DOCKER_FILE_FETCHED}"

   else

   echo "Dockerfile not fetched"

   exit 1

   fi

   docker build -f ${DOCKER_FILE_FETCHED} -t ${TEST_IMAGE_NAME}

   echo "Scan docker image"

   SCAN_RESULT=$(/opt/kaspersky/kesl/bin/kesl-control --scan-container ${TEST_IMAGE_NAME}*)

   echo "Scan done: "

   echo $SCAN_RESULT

10. Save the build job.
