Deployment diagram of Kaspersky Security Center Administration Server and Kaspersky Security Center 14 Web Console

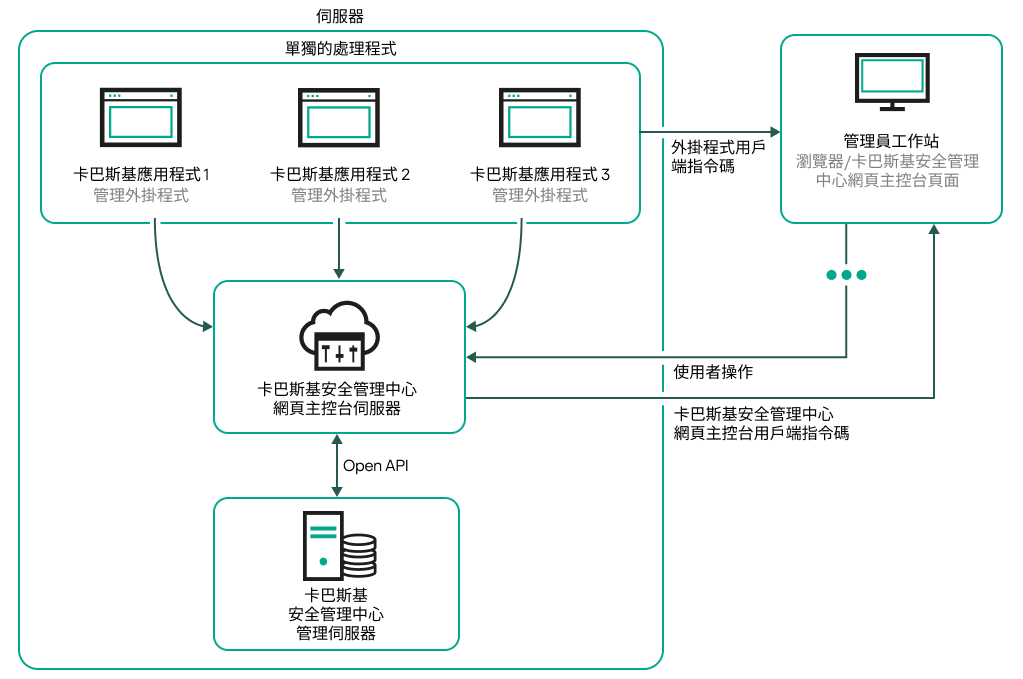

The figure below shows the deployment diagram of Kaspersky Security Center Administration Server and Kaspersky Security Center 14 Web Console.

Administrator’s workstation communicates with Administration Server through Web Console Server. Management plug-ins of Kaspersky applications communicate with Web Console Server.

Deployment diagram of Kaspersky Security Center Administration Server and Kaspersky Security Center 14 Web Console

Management plug-ins for Kaspersky applications installed on protected devices (one plug-in for each application) are deployed together with Kaspersky Security Center 14 Web Console Server.

As an administrator, you access Kaspersky Security Center 14 Web Console by using a browser on your workstation.

When you perform specific actions in Kaspersky Security Center 14 Web Console, Kaspersky Security Center 14 Web Console Server communicates with Kaspersky Security Center Administration Server through OpenAPI. Kaspersky Security Center 14 Web Console Server requests the required information from Kaspersky Security Center Administration Server and displays the results of your operations in Kaspersky Security Center 14 Web Console.
