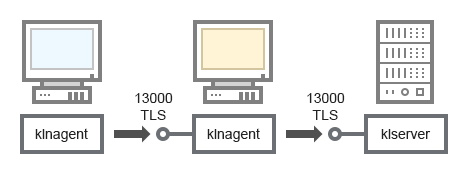

Administration Server, a connection gateway in a network segment, and a client device

A connection gateway accepts a connection from Network Agent installed on a client device and tunnels the connection to Administration Server through TLS port TCP 13000.

Administration Server, a connection gateway in a network segment, and a client device

For schema clarifications, see the table below.

Administration Server, a connection gateway in a network segment, and a client device (traffic)

Device

Port number

Name of the process that opens the port

Protocol

Port purpose

Administration Server

13000

klserver

TCP (TLS)

Receiving connections from Network Agents

Network Agent

13000

klnagent

TCP (TLS)

Receiving connections from Network Agents
