Administration Server and Kaspersky Security Center Web Console

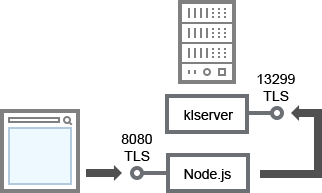

Kaspersky Security Center Web Console Server establishes a connection with OpenAPI through TLS port TCP 8080. Administration Server receives a connection from Kaspersky Security Center Web Console Server over OpenAPI through TLS port TCP 13299.

Administration Server and Kaspersky Security Center Web Console

For schema clarifications, see the table below.

Administration Server and Kaspersky Security Center Web Console (traffic)

Device

Port number

Name of the process that opens the port

Protocol

Port purpose

Administration Server

13299

klserver

TCP (TLS)

Receiving connections from Kaspersky Security Center Web Console to the Administration Server over OpenAPI

Kaspersky Security Center Web Console Server or Administration Server

8080

Node.js: Server-side JavaScript

TCP (TLS)

Receiving connections from Kaspersky Security Center Web Console

Kaspersky Security Center Web Console can be installed on the Administration Server or on another device.

See also:

Conventions used in interaction schemas

Interaction of Kaspersky Security Center Linux components and security applications: more information

Ports used by Kaspersky Security Center Linux
