Preparing to upgrade Kaspersky Secure Mail Gateway via the web interface

Before upgrading Kaspersky Secure Mail Gateway, you are strongly advised to make a copy of your Kaspersky Secure Mail Gateway virtual machine (a snapshot of the virtual machine in the hypervisor) to be able to return to the previous version of Kaspersky Secure Mail Gateway if installation of the new version of Kaspersky Secure Mail Gateway fails.

To take a snapshot of a Kaspersky Secure Mail Gateway virtual machine:

  1. Start VMware vSphere Client.
  2. Select the virtual machine that you want to take a snapshot of.
  3. Open the menu by right-clicking.

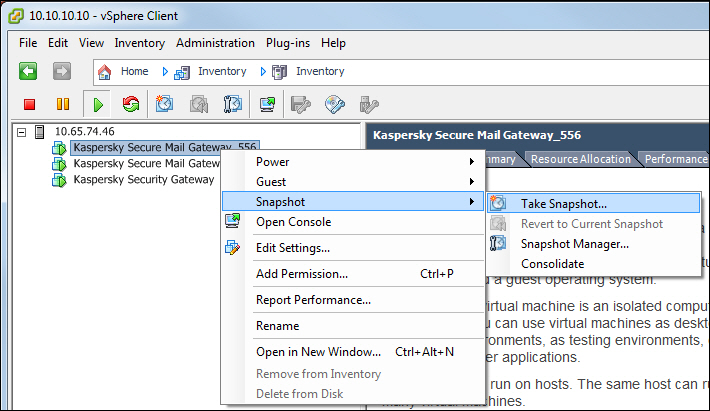

  4. In the menu, select the Snapshot item and Take Snapshot sub-item (see figure below).

    snapshot

    Snapshot of the virtual machine

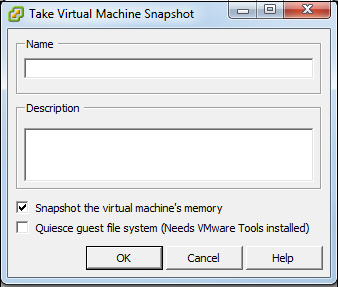

    The Take Virtual Machine Snapshot window opens (see figure below).

    snapshot window

    Input of virtual machine snapshot data

  5. In the Name field, enter the name of the virtual machine snapshot.
  6. In the Description field, enter a description of the virtual machine snapshot.
  7. Select the Snapshot the virtual machine's memory check box.

A snapshot of your virtual machine appears in the list of virtual machines in the left part of the main application window.

See VMware vSphere Client manuals for details on managing virtual machines in VMware vSphere Client.
