Changing the IP address and port number of a node in KSMG

Before changing the address of the node in the KSMG application, we recommend verifying that the new network settings of your operating system are applied.

To change the IP address or port of a cluster node:

  1. Run the cluster node network settings modification script:

    /opt/kaspersky/ksmg-appliance-addon/bin/change_network_settings.sh -a

    This opens a window containing a list of available IP addresses.

    You can switch between buttons by using the Tab key. To enter a default value suggested by the script, press Enter.

  2. Select the IP address of the network adapter to be used for inbound connections while interacting with other cluster nodes and press Enter.

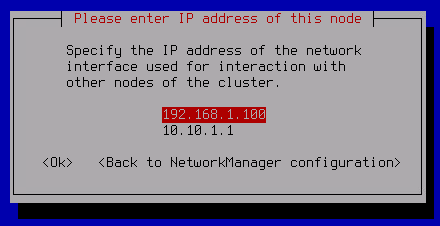

    The screenshot shows the window for selecting the IP address of the network adapter.

  3. To go to the next step, use the OK button.
  4. Enter a port for the interaction with the other cluster nodes and use the OK button.

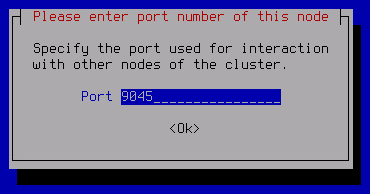

    The screenshot shows the window for entering a port number.

  5. Enter a port for the web interface of the cluster node and use the OK button.

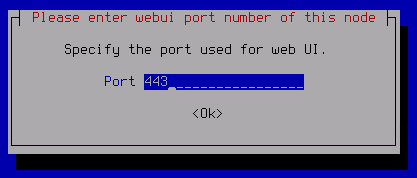

    The screenshot shows the window for entering the port number for the web interface.

  6. Press any key to continue.

    The script restarts the services and applies the new address of the cluster node.

  7. After all services are restarted, restart the cluster node using the following command:

    shutdown -r

The IP address and ports of the cluster node are modified. Proceed to configuring KSMG cluster nodes in the web interface.
