Standard Deployment Schemes
The application deployment scheme is determined by the planned load on the application servers.
Two common deployment scenarios are recommended for optimal operation of the application:
- One-server deployment scenario. Both Worker server and Master server are installed on the same server.
If you don't use a separate proxy server, install the Squid service on the same Kaspersky Web Traffic Security server (see figure below).
One-server deployment scenario
- Scenario of deployment on two or more servers (see the figure below). Both Worker server and Master server are installed on the same server. A Worker server and a Secondary master server are installed on the second server. Worker servers are installed on all other servers.
If you don't use a separate proxy server, install the Squid service on the same Worker server (see figure below).

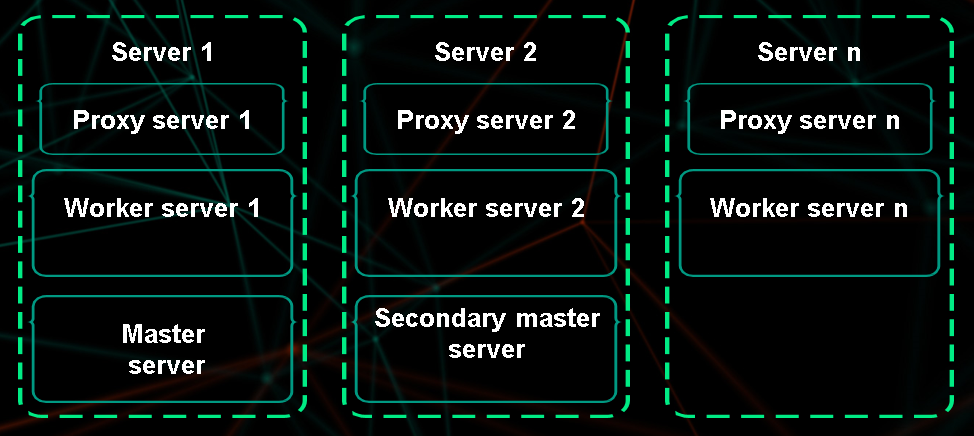

Scenario of deployment on two or more servers
