Step 11. Editing the network settings of a cluster node

At this step, you can configure the IP address and ports of the network adapter.

To edit network settings of the node:

  1. Select the IP address of the network adapter to be used for inbound connections while interacting with other cluster nodes and press Enter.

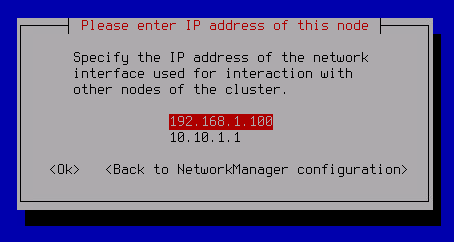

    The screenshot shows the window for selecting the IP address of the network adapter.

  2. Click Ok.
  3. Enter a port for the interaction with the other cluster nodes and use the OK button.

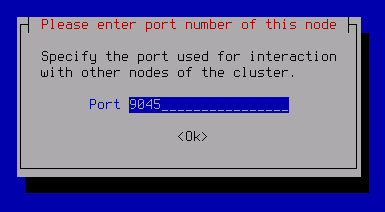

    The screenshot shows the window for entering a port number.

  4. Enter a port for the web interface of the cluster node and use the OK button.

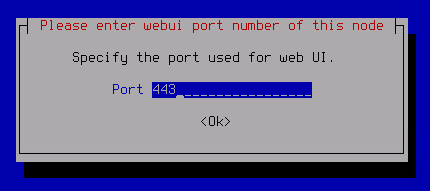

    The screenshot shows the window for entering the port number for the web interface.

The network settings of the cluster node are configured.
