Layout of Control Center database window

The Control Center window consists of the following main elements (see figure below):

Switch panel – located in the upper part of the window, it contains tabs to switch between the Control Center and Event log and statistics databases, and the Kaspersky Anti-Virus Help page.
Status panel – located in the upper part of the window; it contains the name of the connected server and the name of the server on which the document is being edited.
When using a Lotus Notes client, the server on which the Control Center database replica is being edited may be different than the connected server.
Action panel – located in the upper part of the control panel; it contains buttons that can be used to edit the profile or server settings.
Navigation panel – located in the left part of the window; depending on which tab is selected in the switch panel, it contains the following elements:
- list of profiles and the servers they contain;
- Event log and statistics sections list.
Control panel – located in the right part of the window; designed for managing the settings of profiles / servers and records in Kaspersky Anti-Virus databases.
Viewing panel – located in the lower part of the window; designed for viewing Event log records.

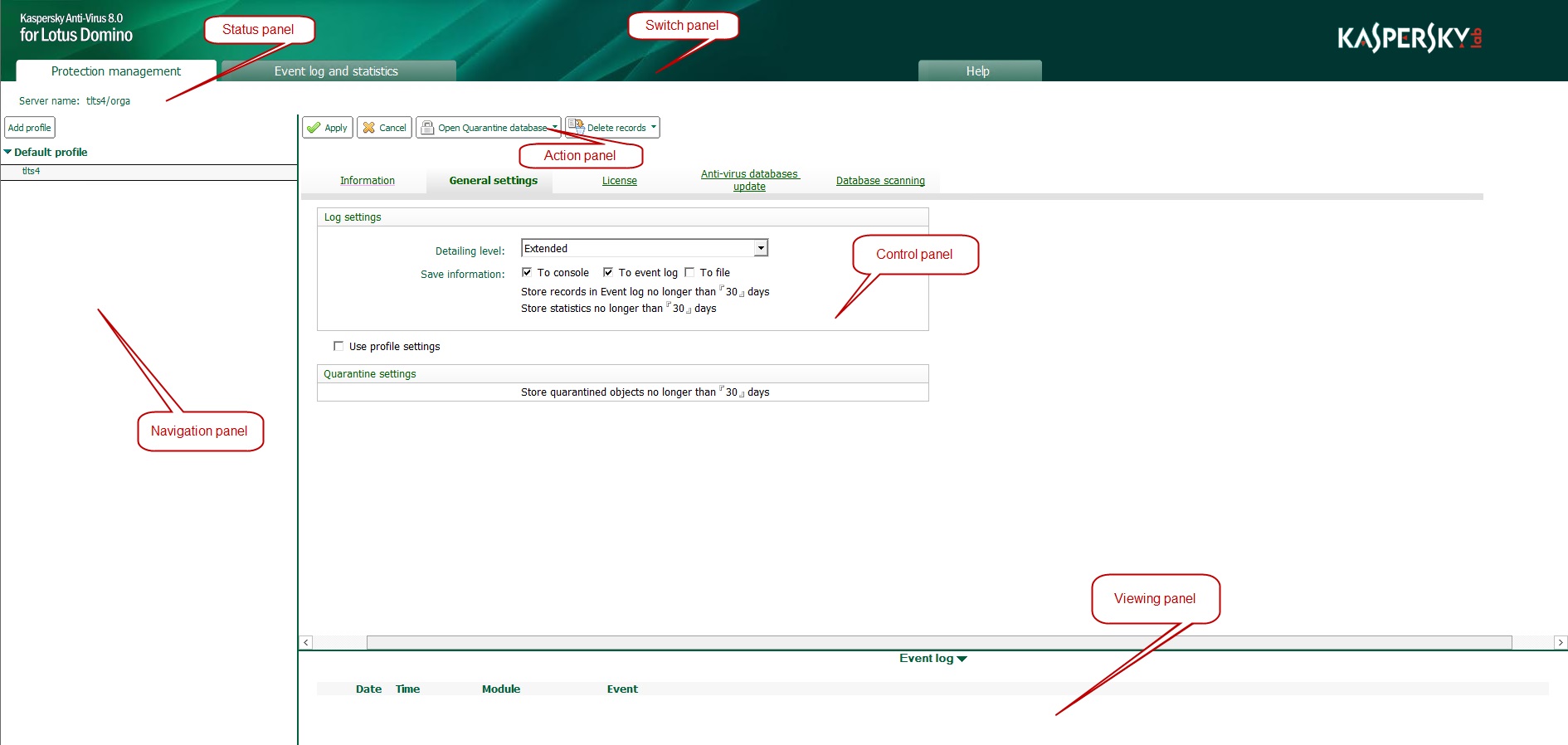

Layout of Control Center database window

The contents of the navigation panel, control panel and viewing panel depend on which tab is selected in the switch panel.

The privileges of the current user determine the accessibility of the interface elements and the input fields in the Control Center window.
