Process control section

In the Process control section of the Application Server web interface (see the figure below), you can view the values of the industrial process parameters (tags), as well as configure tags and rules for the process control.

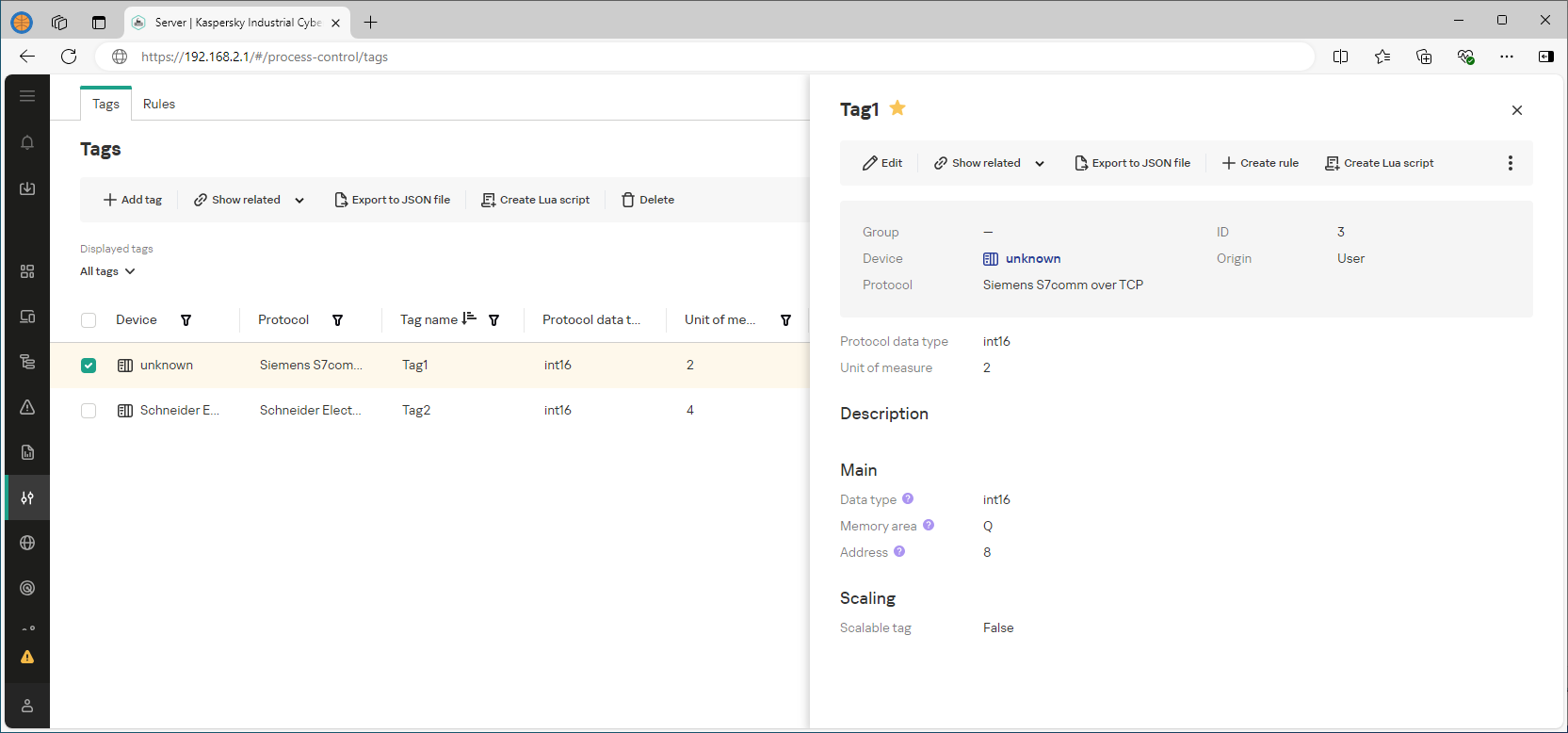

Example of the displayed elements and data in the web interface section.

Process control section

The Process control section contains tabs with tables of tags and Process Control rules.

When a tag or rule is selected, the details area opens in the right part of the section. The details area contains information about the selected object and the tools for managing it.
