About configuring event export in a SIEM system

The process of exporting events from Kaspersky Security Center to external SIEM systems involves two parties: an event sender—Kaspersky Security Center and an event receiver—SIEM system. You must configure the export of events in your SIEM system and in the Kaspersky Security Center.

The settings that you specify in the SIEM system depend on the particular system that you are using. Generally, for all SIEM systems you must set up a receiver and, optionally, a message parser to parse received events.

Setting up the receiver

To receive events sent by Kaspersky Security Center, you must set up the receiver in your SIEM system. In general, the following settings must be specified in the SIEM system:

Export protocol or input type
It is the message transfer protocol, either TCP/IP or UDP. This protocol must be the same as the protocol you specified in Kaspersky Security Center.
Port
Port number to connect to Kaspersky Security Center. This port must be the same as the port you specified in Kaspersky Security Center.
Message protocol or source type
The protocol used to export events to the SIEM system. It can be one of the standard protocols: Syslog, CEF, or LEEF. The SIEM system selects the message parser according to the protocol you specify.

Depending on the SIEM system that you use, you may have to specify some additional receiver settings.

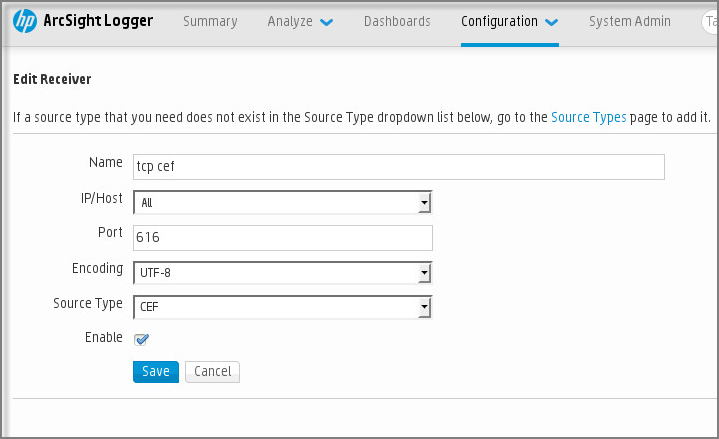

The figure below shows the receiver setup screen in ArcSight.

In ArcSight, the receiver setup screen is located on the Configuration tab. The receiver settings are specified as follows: the receiver name is tcp cef, the IP/Host property is All, the Port is 616, the Encoding is UTF-8, the Source Type is CEF.

Receiver setup in ArcSight

Message parser

Exported events are passed to SIEM systems as messages. These messages must be properly parsed so that information on the events can be used by the SIEM system. Message parsers are part of the SIEM system; they are used to split the contents of the message into the relevant fields, such as event ID, severity, description, parameters. This enables the SIEM system to process events received from Kaspersky Security Center so that they can be stored in the SIEM system database.
