The client device connects to the distribution point via port 13000 and, if you are using the distribution point as a push server, also via port 13295; the distribution point multicasts to Network Agents via port 15000 (see figure below). Updates and installation packages are received from a distribution point via port 15001.

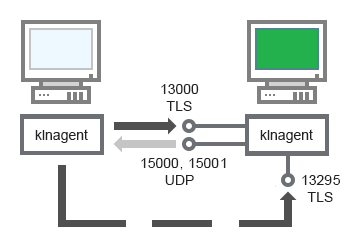

Upgrading software on a client device through a distribution point
For schema clarifications, see the table below.
Upgrading software through a distribution point (traffic)
Device |
Port number |
Name of the process that opens the port |
Protocol |
TLS (for TCP only) |
Port purpose |
---|---|---|---|---|---|
Network Agent |
15000 |
klnagent |
UDP |
Null |
Multicasting for Network Agents |
Network Agent |
15001 |
klnagent |
UDP |
Null |
Receiving updates and installation packages from a distribution point |
Distribution point |
13000 |
klnagent |
TCP |
Yes |
Receiving connections from Network Agents |
Distribution point |
13295 |
klnagent |
TCP |
Yes |
Receiving connections from client devices (server push) |
