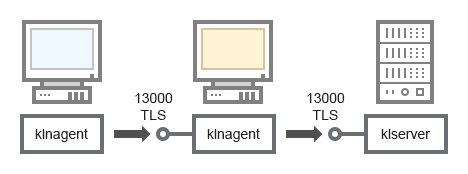

Administration Server, a connection gateway in a network segment, and a client device
For schema clarifications, see the table below.
Administration Server, a connection gateway in a network segment, and a client device (traffic)
Device |
Port number |
Name of the process that opens the port |
Protocol |
TLS |
Port purpose |
---|---|---|---|---|---|
Administration Server |
13000 |
klserver |
TCP |
Yes |
Receiving connections from Network Agents |
Network Agent |
13000 |
klnagent |
TCP |
Yes |
Receiving connections from Network Agents |
