Activating and managing the security application on a mobile device

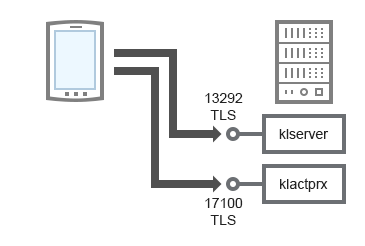

A mobile device connects to Administration Server through TLS port TCP 13292 to manage a security application. To activate a security application, the mobile device connects to Administration Server through TLS port TCP 17100.

For schema clarifications, see the table below.

Activating and managing the security application on a mobile device (traffic)

Device	Port number	Name of the process that opens the port	Protocol	TLS	Port purpose
Administration Server	13292	klserver	TCP	Yes	Receiving connections from Administration Console to Administration Server
Administration Server	17100	klactprx	TCP	Yes	Receiving connections for application activation from mobile devices
