Type 1c-log

The 1c-log type is used to retrieve data from 1C application technology logs. Strings delimiter: \n. The connector accepts only the first line from a multi-line event record. This type of connector is available for Linux Agents.

When creating this type of connector, specify values for the following settings:

• Basic settings tab:
  • Name (required)—a unique name for this type of resource. Must contain 1 to 128 Unicode characters.
  • Tenant (required)—name of the tenant that owns the resource.
  • Type (required)—connector type, 1c-log.
  • URL (required)—full path to the directory containing files that you need to interact with. For example, /var/log/1c/logs/.

    Limitations when using prefixes in file paths

    Prefixes that cannot be used when specifying paths to files:

    • /*
    • /bin
    • /boot
    • /dev
    • /etc
    • /home
    • /lib
    • /lib64
    • /proc
    • /root
    • /run
    • /sys
    • /tmp
    • /usr/*
    • /usr/bin/
    • /usr/local/*
    • /usr/local/sbin/
    • /usr/local/bin/
    • /usr/sbin/
    • /usr/lib/
    • /usr/lib64/
    • /var/*
    • /var/lib/
    • /var/run/
    • /opt/kaspersky/kuma/

    These patterns are specified as regular expressions and are used by the system to validate the path. The * character in patterns matches any sequence of characters and must not be manually specified in the path itself if it is not part of a valid path.

    Files are available at the following paths:

    • /opt/kaspersky/kuma/clickhouse/logs/
    • /opt/kaspersky/kuma/mongodb/log/
    • /opt/kaspersky/kuma/victoria-metrics/log/
  • Description—resource description: up to 4,000 Unicode characters.
• Advanced settings tab:
  • Character encoding setting specifies character encoding. The default value is UTF-8.
  • Debug—a toggle switch that lets you specify whether resource logging must be enabled. By default, this toggle switch is in the Disabled position.

Connector operation diagram:

1. All 1C technology log files are searched.

   Log file requirements:

   • Files with the LOG extension are created in the log directory (/var/log/1c/logs/ by default) within a subdirectory for each process.

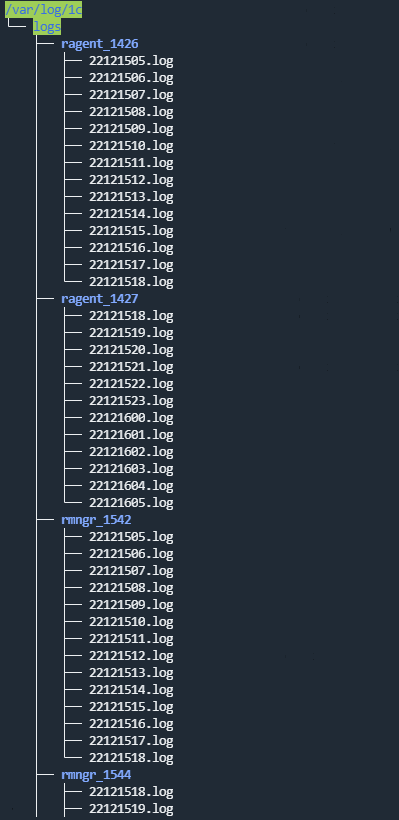

     Example of a supported 1C technology log structure



   • Events are logged to a file for an hour; after that, the next log file is created.
   • The file names have the following format: <YY><MM><DD><HH>.log. For example, 22111418.log is a file created in 2022, in the 11th month, on the 14th at 18:00.
   • Each event starts with the event time in the following format: <mm>:<ss>.<microseconds>-<duration_in_microseconds>.
2. The processed files are discarded.

   Information about processed files is stored in the file /<collector working directory>/1c_log_connector/state.json.

3. Processing of the new events starts, and the event time is converted to the RFC3339 format.
4. The next file in the queue is processed.

Connector limitations:

• Installation of a collector with a 1c-log connector is not supported in a Windows operating system. To set up file transfers of 1C log files for processing by the KUMA collector:
  1. On the Windows server, grant read access over the network to the folder with the 1C log files.
  2. On the Linux server, mount the shared folder with the 1C log files on the Windows server (see the list of supported operating systems).
  3. On the Linux server, install the collector that you want to process 1C log files from the mounted shared folder.
• Only the first line from a multi-line event record is processed.
• The normalizer processes only the following types of events:
  • ADMIN
  • ATTN
  • CALL
  • CLSTR
  • CONN
  • DBMSSQL
  • DBMSSQLCONN
  • DBV8DBENG
  • EXCP
  • EXCPCNTX
  • HASP
  • LEAKS
  • LIC
  • MEM
  • PROC
  • SCALL
  • SCOM
  • SDBL
  • SESN
  • SINTEG
  • SRVC
  • TLOCK
  • TTIMEOUT
  • VRSREQUEST
  • VRSRESPONSE
