Replacing the graphical elements of the orchestrator web interface

To replace the graphics of the orchestrator web interface:

  1. Configure the frontend part of the solution in the www section of the configuration file.
  2. On the administrator's device, go to the /oem directory of the extracted installation archive. This directory contains the default graphics of the orchestrator web interface. You can replace the following files:
    • auth_bg_error.svg is the image that is displayed in the background when an error occurs while logging into the orchestrator web interface.

      auth_error

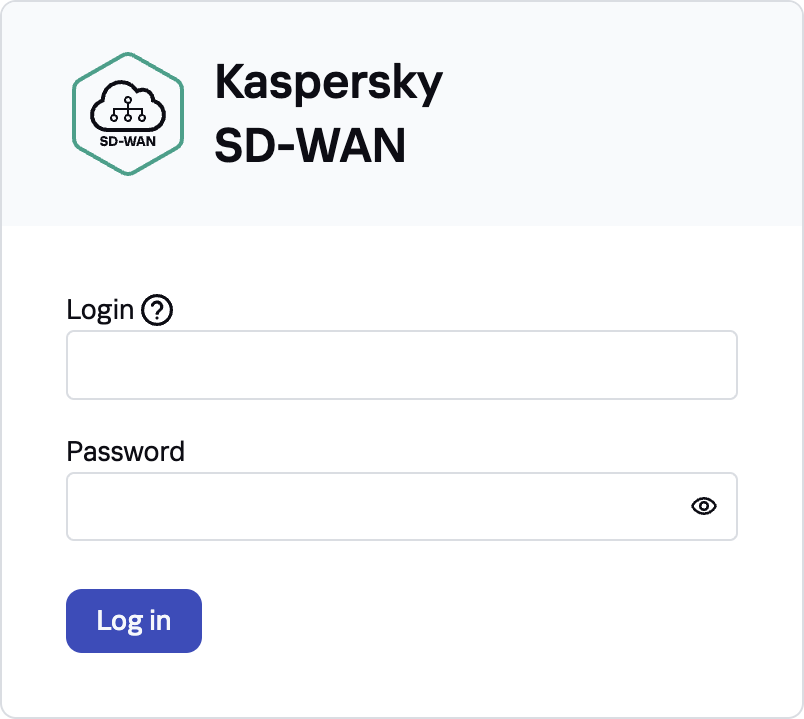

    • auth_bg.svg is the image that is displayed in the background when logging into the orchestrator web interface.

      auth

    • favicon_dark.png and favicon_dark.svg is the icon that is displayed on the orchestrator web interface tab when the browser is in the dark mode.

      favicon_dark_2

    • favicon.png and favicon.svg is the icon that is displayed on the orchestrator web interface tab when the browser is in the light mode.

      favicon_2

    • logo_activation.svg is the icon that is displayed during the automatic registration of a CPE device.

      Automatic_registration

    • logo.svg and title.svg are the icon and title that are displayed in the upper part of the navigation pane of the orchestrator web interface.

      solution_icon
