Administration Server and Kaspersky Security Center Web Console
Administration Server and Kaspersky Security Center Web Console

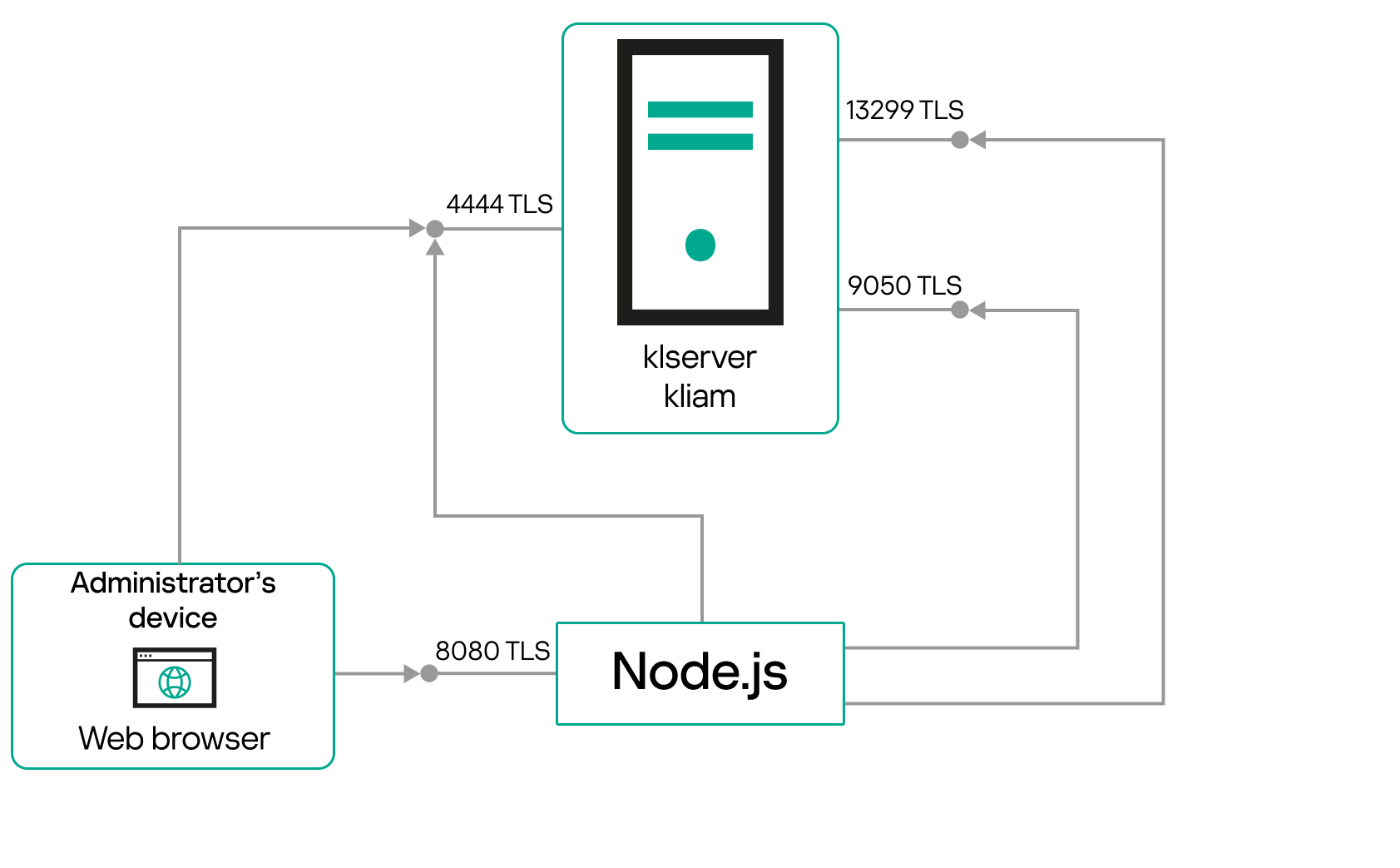

For schema clarifications, see the table below.
Administration Server and Kaspersky Security Center Web Console (traffic)
Device |
Port number |
Name of the process that opens the port |
Protocol |
Port purpose |
|---|---|---|---|---|
Administration Server |
13299 |
klserver |
TCP (TLS) |
Receiving connections from Kaspersky Security Center Web Console and Identity and Access Manager (IAM) to the Administration Server over OpenAPI |
Kaspersky Security Center Web Console Server or Administration Server |
8080 |
Node.js: Server-side JavaScript |
TCP (TLS) |
Receiving connections from Kaspersky Security Center Web Console |
Administration Server |
4444 |
kliam |
TCP (TLS) |
Receiving connections from Kaspersky Security Center Web Console Server and the browser (used with Kaspersky Security Center Web Console) to Administration Server with IAM over the OpenID Connect authentication protocol |
Administration Server |
9050 |
kliam |
TCP (TLS) |
Receiving connections from Kaspersky Security Center Web Console to IAM |
Kaspersky Security Center Web Console can be installed on the Administration Server or on another device.
