Step 4. Performing the verification test (QRadar)

This section explains how to check the capabilities of Kaspersky CyberTrace by performing the verification test.

Please make sure you perform the verification test before editing any matching process settings.

What is the verification test

The verification test is a procedure that is used to check the capabilities of Kaspersky CyberTrace and to confirm the accuracy of the integration.

During this test you will check whether events from QRadar are received by Feed Service, whether events from Feed Service are received by QRadar, and whether events are correctly parsed by Feed Service using the regular expressions.

About the verification test file

The verification test file is a file that contains a collection of events with URLs, IP addresses, and hashes. This file is located in the ./verification directory in the distribution kit. The name of this file is kl_verification_test_leef.txt.

Verification procedure

To verify the installation:

  1. Make sure that the "KL_Verification_Tool" log source is added to QRadar and routing rules are set in such a way that events from "KL_Verification_Tool" are sent to Feed Service.
  2. Open QRadar Console and select the Log Activity tab.
  3. Add a filter:
    1. Click the Add Filter button.
    2. In the Parameter drop-down list, select Log Source.
    3. In the Operator drop-down list, select Equals.
    4. In the Value group, in the Log Source drop-down list select the required service name.

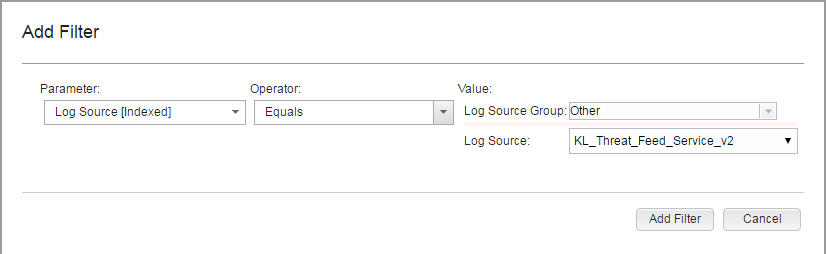

    Adding a filter for browsing events

    1. Click the Add Filter button.

    The Log Source is KL_Threat_Feed_Service_v2 string will be displayed under Current Filters.

  4. In the View drop-down list, select Real Time to clear the event area.

    You now can browse information about the service events.

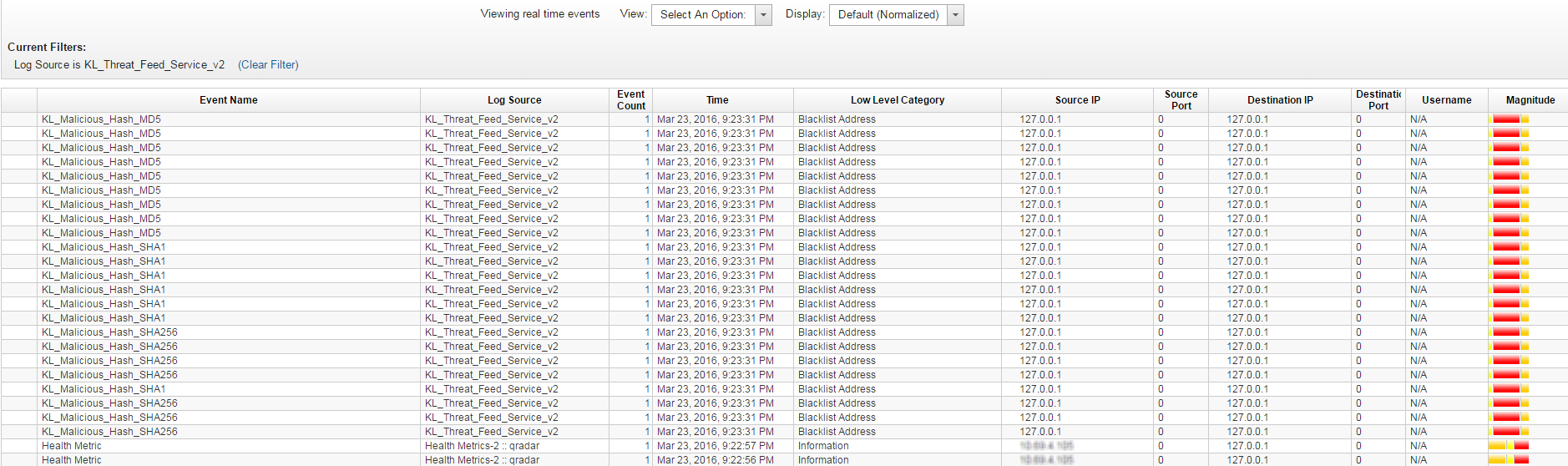

    Browsing filtered information

  5. Send the kl_verification_test_leef.txt file to QRadar by using Log Scanner, by running the following command:

    For Linux: ./log_scanner -p ../verification/kl_verification_test_leef.txt

    For Windows: log_scanner.exe -p ..\verification\kl_verification_test_leef.txt

    If you specify the -r flag in this command, the test results are written to the Log Scanner report file. If you do not specify the -r flag, the test results are sent to the SIEM solution by using the settings for outbound events specified for Feed Service.

    The expected results to be displayed by QRadar depend on the feeds you use. The verification test results are listed in the following table.

    Verification test results

    Feed used

    Detected objects

    Malicious URL Data Feed

    http://fakess123.nu

    http://badb86360457963b90faac9ae17578ed.com

    Phishing URL Data Feed

    http://fakess123ap.nu

    http://e77716a952f640b42e4371759a661663.com

    Botnet CnC URL Data Feed

    http://fakess123bn.nu

    http://a7396d61caffe18a4cffbb3b428c9b60.com

    IP Reputation Data Feed

    192.0.2.0

    192.0.2.3

    Malicious Hash Data Feed

    FEAF2058298C1E174C2B79AFFC7CF4DF

    44D88612FEA8A8F36DE82E1278ABB02F (stands for EICAR Standard Anti-Virus Test File)

    C912705B4BBB14EC7E78FA8B370532C9

    Mobile Malicious Hash Data Feed

    60300A92E1D0A55C7FDD360EE40A9DC1

    Mobile Botnet CnC URL Data Feed

    001F6251169E6916C455495050A3FB8D (MD5 hash)

    http://sdfed7233dsfg93acvbhl.su/steallallsms.php (URL mask)

    Ransomware URL Data Feed

    http://fakess123r.nu

    http://fa7830b4811fbef1b187913665e6733c.com

    Vulnerability Data Feed

    D8C1F5B4AD32296649FF46027177C594

    APT URL Data Feed

    http://b046f5b25458638f6705d53539c79f62.com

    APT Hash Data Feed

    7A2E65A0F70EE0615EC0CA34240CF082

    APT IP Data Feed

    192.0.2.4

    IoT URL Data Feed

    http://e593461621ee0f9134c632d00bf108fd.com/.i

    Demo Botnet CnC URL Data Feed

    http://5a015004f9fc05290d87e86d69c4b237.com

    http://fakess123bn.nu

    Demo IP Reputation Data Feed

    192.0.2.1

    192.0.2.3

    Demo Malicious Hash Data Feed

    776735A8CA96DB15B422879DA599F474

    FEAF2058298C1E174C2B79AFFC7CF4DF

    44D88612FEA8A8F36DE82E1278ABB02F

    ICS Hash Data Feed

    7A8F30B40C6564EFF95E678F7C43346C

    Browsing events from Feed Service

If the actual results of the test are the same as those expected, the integration of Feed Service with QRadar is correct.
