Turning the Kraftway Rubezh-N device on and off

Before you start working with Kaspersky IoT Secure Gateway 1000, you must connect the Kraftway Rubezh-N device to the network and turn it on.

Preparations for installation and the actual installation of Kaspersky IoT Secure Gateway 1000 are performed by Kaspersky experts.

After Kaspersky IoT Secure Gateway 1000 starts for the first time, it is recommended to configure the network, create and upload an administrator certificate, configure the date and time, and change the web server certificate to the one that is used in your organization.

To turn on the Kraftway Rubezh-N device:

1. Connect a power cable to the port on the rear panel of the Kraftway Rubezh-N (see the figure below).



   Power connector on the rear panel of the Kraftway Rubezh-N

2. Connect the external network cable to the appropriate external network port on the front panel of the Kraftway Rubezh-N (see the figure below).

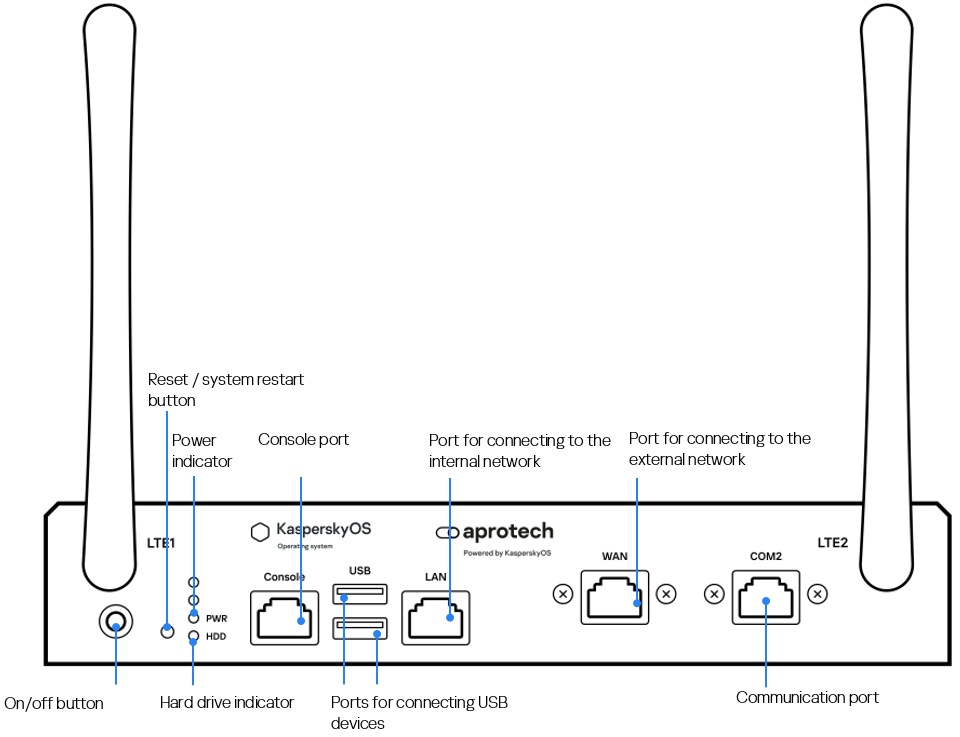

   Front panel of the Kraftway Rubezh-N

3. To turn on the Kraftway Rubezh-N device, press the on/off button on the left side of the front panel.

   The Kraftway Rubezh-N will turn on, and Kaspersky IoT Secure Gateway 1000 will start automatically.

4. To turn off the Kraftway Rubezh-N device, close the connection session with the Kaspersky IoT Secure Gateway 1000 web interface and press the on/off button on the left side of the front panel.

   The Kraftway Rubezh-N will turn off.
