Applications and architecture of Kaspersky Security Center Cloud Console
This guide contains information about features of the Select and Advanced editions of Kaspersky Endpoint Security for Business managed via the on-premises console and features of the Advanced edition of Kaspersky Endpoint Security for Business managed via the cloud console. For information about other editions, please refer to Online Help for the Kaspersky applications included in the solution.
Applications
Kaspersky Endpoint Security for Business managed via the cloud-based console consists of several Kaspersky applications:
- Kaspersky Security Center Cloud Console, which provides centralized management of the policies and tasks.
- Kaspersky security applications installed on endpoint devices of an organization's network. Use the link to download the latest versions of the Kaspersky applications:
For the full list of applications that can be managed, refer to the Kaspersky Security Center Cloud Console documentation.
Architecture of Kaspersky Endpoint Security for Business managed via the cloud-based console

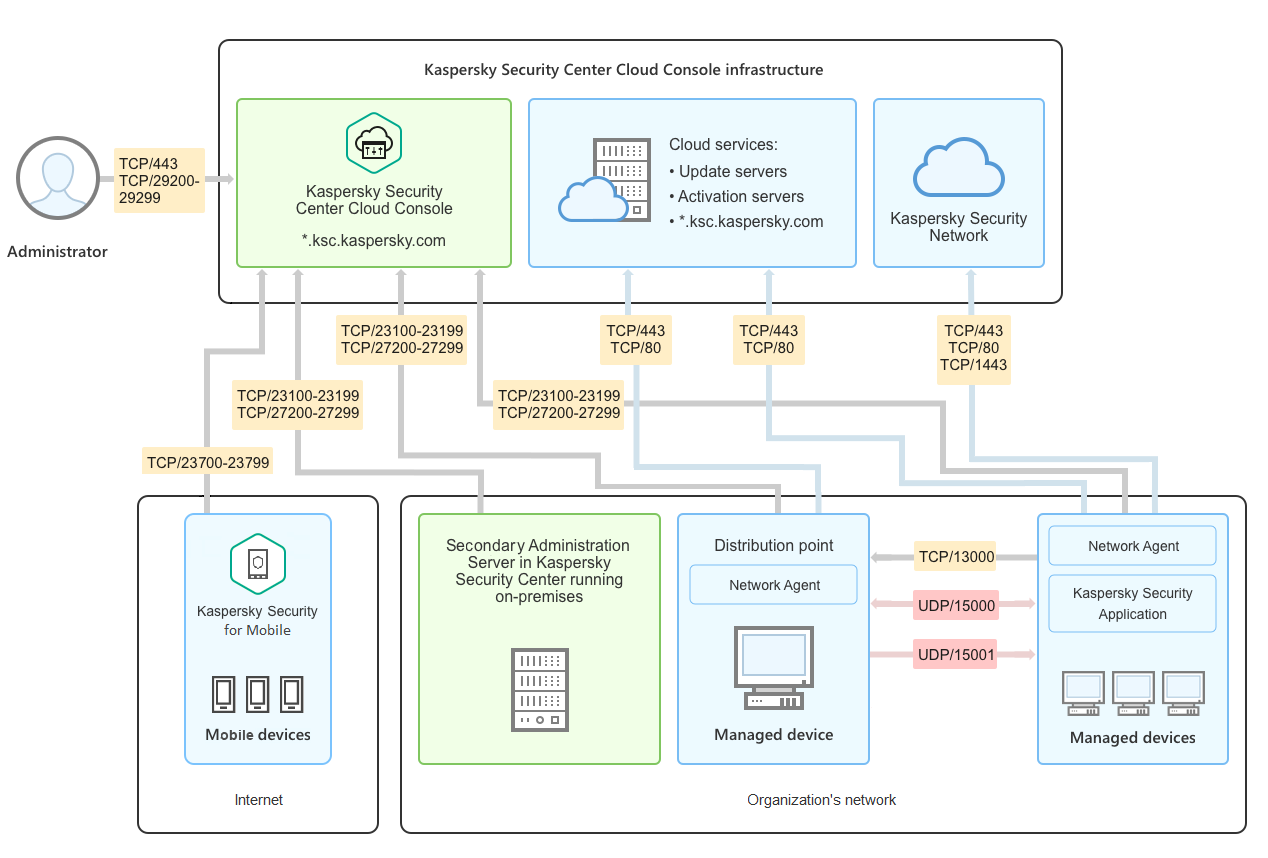

The figure below shows Kaspersky Endpoint Security for Business managed via the cloud-based console.
Architecture of Kaspersky Endpoint Security for Business managed via the cloud-based console
Kaspersky Endpoint Security for Business managed via the cloud-based console includes two main components: Kaspersky Security Center Cloud Console infrastructure and customer's infrastructure.
Kaspersky Security Center Cloud Console infrastructure consists of the following:
- Cloud-based Administration Console. Provides a web interface for creating and maintaining the protection system of a client organization's network that is managed by Kaspersky Security Center Cloud Console.
- Cloud services. Includes update servers and activation servers.
- Kaspersky Security Network (KSN). Servers that contain a Kaspersky database with continuously updated information about the reputation of files, web resources, and software. Kaspersky Security Network ensures faster responses by Kaspersky applications to threats, improves the performance of some protection components, and reduces the likelihood of false positives.
Customer's infrastructure may consist of the following:
- Distribution point. Computer that has Network Agent installed and is used for update distribution, network polling, remote installation of applications, getting information about computers in an administration group, and / or broadcasting domain. The administrator selects the appropriate devices and assigns them distribution points manually.
- Managed devices. Computers of customer's network protected through Kaspersky Security Center Cloud Console. Network Agent and a Kaspersky security application must be installed on each managed device.
- Secondary Administration Server running on-premises (optional). You can use an on-premises Administration Server to create a hierarchy of Administration Servers.
