IP range polling

Expand all | Collapse all

Kaspersky Security Center Linux attempts to perform reverse name resolution for every IPv4 address from the specified range to a DNS name using standard DNS requests. If this operation succeeds, the server sends an ICMP ECHO REQUEST (the same as the ping command) to the received name. If the device responds, the information about it is added to the Kaspersky Security Center Linux database. The reverse name resolution is necessary to exclude the network devices that can have an IP address but are not computers, for example, network printers or routers.

This polling method relies upon a correctly configured local DNS service. It must have a reverse lookup zone. If this zone is not configured, IP subnet polling will yield no results.

Initially, Kaspersky Security Center Linux gets IP ranges for polling from the network settings of the device on which it is installed. If the device address is 192.168.0.1 and the subnet mask is 255.255.255.0, Kaspersky Security Center Linux includes the network 192.168.0.0/24 in the list of polling address automatically. Kaspersky Security Center Linux polls all addresses from 192.168.0.1 to 192.168.0.254.

If only IP range polling is enabled, Kaspersky Security Center Linux discovers devices only with IPv4 addresses. If your network includes IPv6 devices, turn on Zeroconf polling of devices.

Viewing and modifying the settings for IP range polling

To view and modify the properties of IP range polling:

1. In the main menu, go to Discovery & deployment → Discovery → IP ranges.

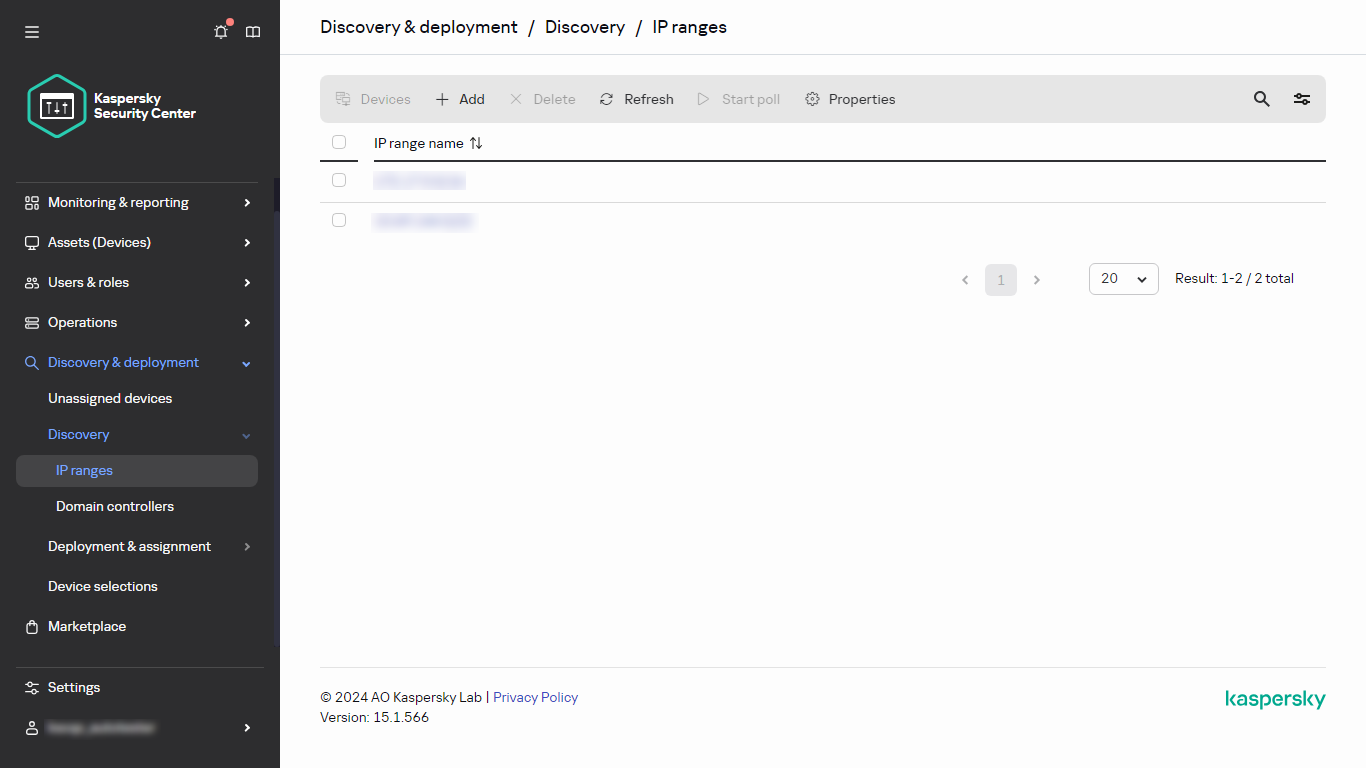

   IP range list

2. Click the Properties button.

   The IP polling properties window opens.

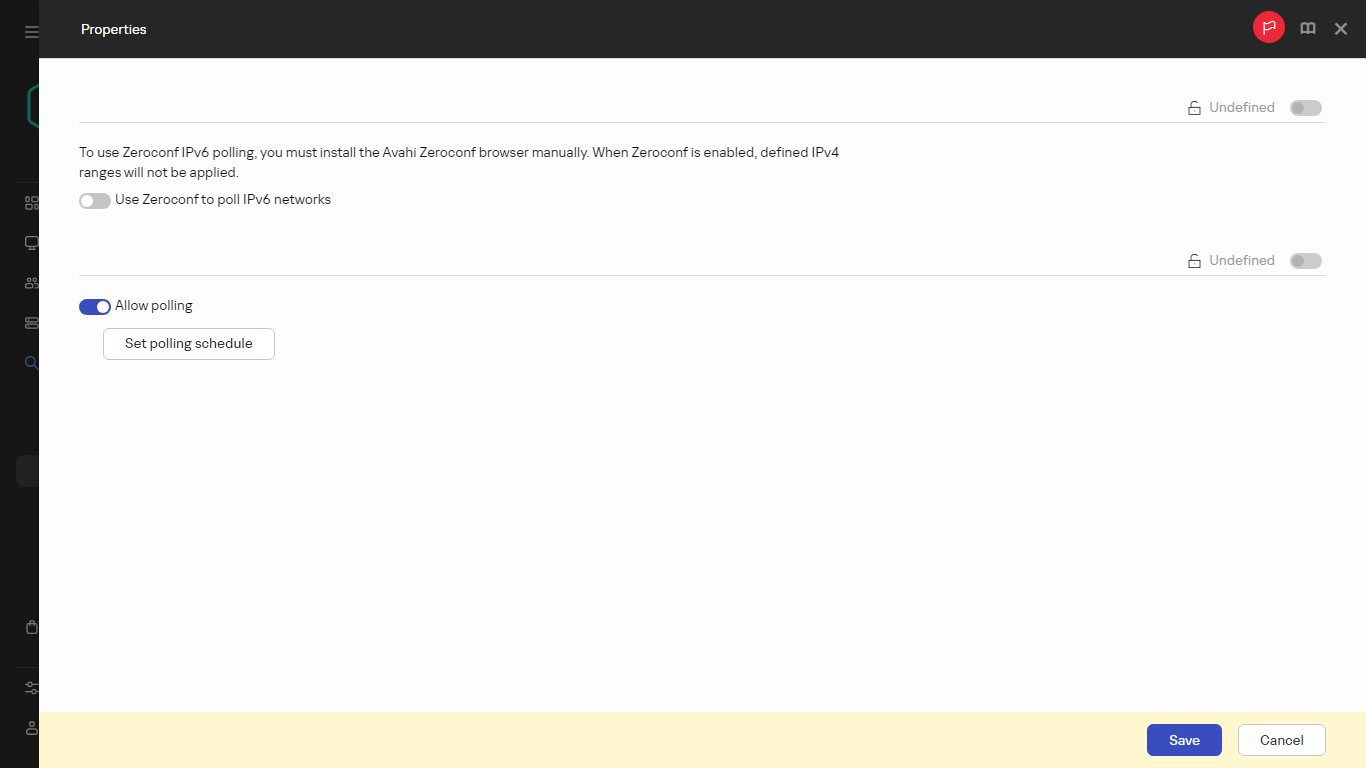

   The IP polling properties

3. Enable or disable IP polling by using the Allow polling toggle button.
4. Configure the poll schedule. By default, IP polling runs every 420 minutes (seven hours).

   When specifying the polling interval, make sure that this setting does not exceed the value of the IP address lifetime parameter. If an IP address is not verified by polling during the IP address lifetime, this IP address is automatically removed from the polling results. By default, the life span of the polling results is 24 hours, because dynamic IP addresses (assigned using Dynamic Host Configuration Protocol (DHCP)) change every 24 hours.

   Polling schedule options:

   • Every N days

     The polling runs regularly, with the specified interval in days, starting from the specified date and time.

     By default, the polling runs every day, starting from the current system date and time.

   • Every N minutes

     The polling runs regularly, with the specified interval in minutes, starting from the specified time.

   • By days of week

     The polling runs regularly, on the specified days of week, and at the specified time.

   • Every month on specified days of selected weeks

     The polling runs regularly, on the specified days of each month, and at the specified time.

   • Run missed tasks

     If the Administration Server is switched off or unavailable during the time for which the poll is scheduled, the Administration Server can either start the poll immediately after it is switched on, or wait for the next time for which the poll scheduled.

     If this option is enabled, the Administration Server starts polling immediately after it is switched on.

     If this option is disabled, the Administration Server waits for the next time for which the polling is scheduled.

     By default, this option is disabled.

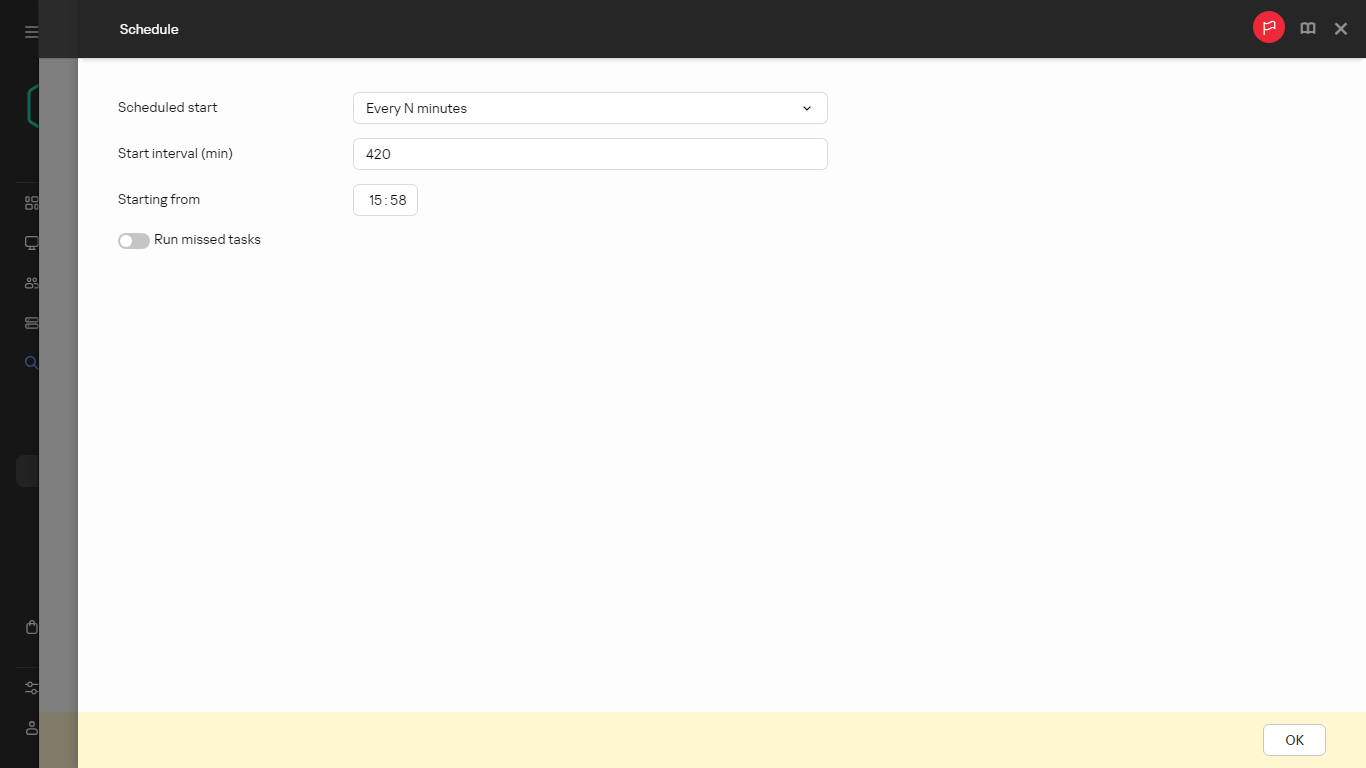

   Configuring the polling schedule

5. Click the Save button.

The properties are saved and applied to all IP ranges.

Running the poll manually

To run the poll immediately,

Click Start poll.
