Managing the Kaspersky SD-WAN infrastructure
Locations where you deploy all Kaspersky SD-WAN components other than CPE devices are called data centers. You need to add the data centers to the orchestrator web interface to manage controllers and VIMs, and to specify the Zabbix proxy server to configure solution component monitoring.
If you have a large number of data centers, you can add them to domains. Domains are logical groupings of data centers based on a certain criterion, such as geographic location. Before adding data centers, you must create at least one domain. You can move data centers between domains.
In each data center, you must create at least one management subnet to assign IP addresses, DNS servers, and static routes to CPE devices and virtual network functions.

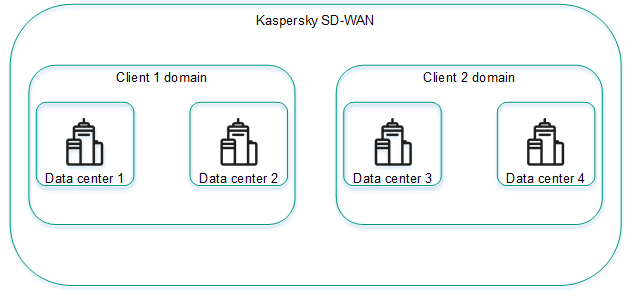

The figure below shows a diagram of an organization. Kaspersky SD-WAN components are deployed in four data centers (Data centers 1–4). The organization is providing the solution to two clients, each of which has an SD-WAN instance deployed. Two data centers are used to deploy each instance of SD-WAN. Data centers have been added to domains that correspond to clients (Client 1 domain and Client 2 domain).
Example of an organization with domains and data centers
