Managing CPE devices > Ensuring connectivity of CPE devices with SD-WAN Controllers
Ensuring connectivity of CPE devices with SD-WAN Controllers
Ensuring connectivity of CPE devices with SD-WAN Controllers
CPE devices establish a connection with SD-WAN Controllers via the OpenFlow protocol in the
control plane
through all WAN interfaces: a TCP session is established with all SD-WAN Controllers through each WAN interface of the CPE device.
The control part of the network that controls the transmission of traffic packets through CPE devices. Performs functions such as network discovery, route calculation, traffic prioritisation, and security policy enforcement. The control plane allows centrally managing the network by providing a full-scale view of all performed operations. Consists of an orchestrator and an SD-WAN controller.

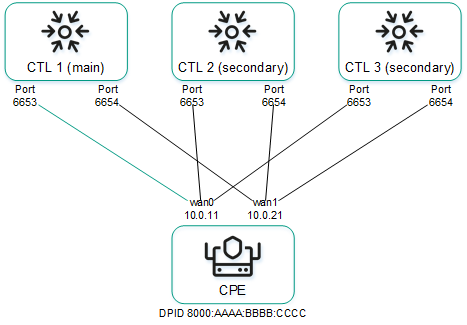

The diagram below shows the principle of establishing connections between a CPE device and SD-WAN Controllers.
Establishing connections between SD-WAN Controllers and a CPE device
In the example above, in a cluster of three controllers and a CPE device six TCP sessions are established with two WAN interfaces:
- 10.0.1.1 → ctl1:6653
- 10.0.2.1 → ctl1:6654
- 10.0.1.1 → ctl2:6653
- 10.0.2.1 → ctl2:6654
- 10.0.1.1 → ctl3:6653
- 10.0.2.1 → ctl3:6654
Only one session is a primary session at any given time. The parameters for switching and restoring the main session are specified when configuring the connection of the CPE device to the SD-WAN network.
