Kaspersky Unified Monitoring and Analysis Platform

Configuring integration in R-Vision IRP

This section describes integration of KUMA with R-Vision IRP from the KUMA side.

Integration in R-Vision IRP is configured in the Settings section of the R-Vision IRP web interface. For details on configuring R-Vision IRP, please refer to the documentation on this application.

Configuring integration with KUMA consists of the following steps:

• Configuring R-Vision IRP user role
  1. Assign the Incident manager system role to the R-Vision IRP user utilized for integration. The role is assigned when a user is selected in the R-Vision IRP web interface in the Settings → General → System users section. The role is added in the System Roles block of settings.

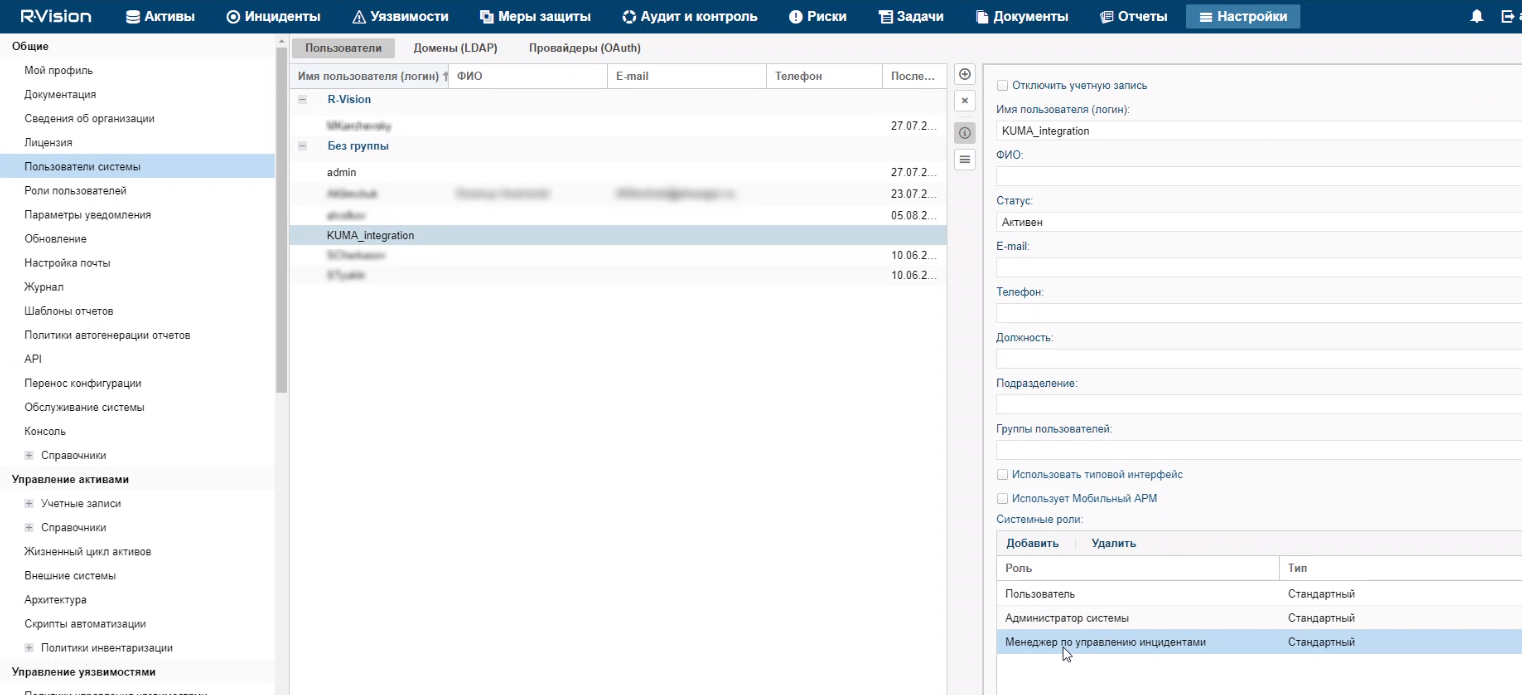

     R-Vision IRP user with the Incident Manager role



  2. Make sure that the API token of the R-Vision IRP user utilized for integration is indicated in the secret in the KUMA web interface. The token is displayed in the R-Vision IRP web interface under Settings → General → API.

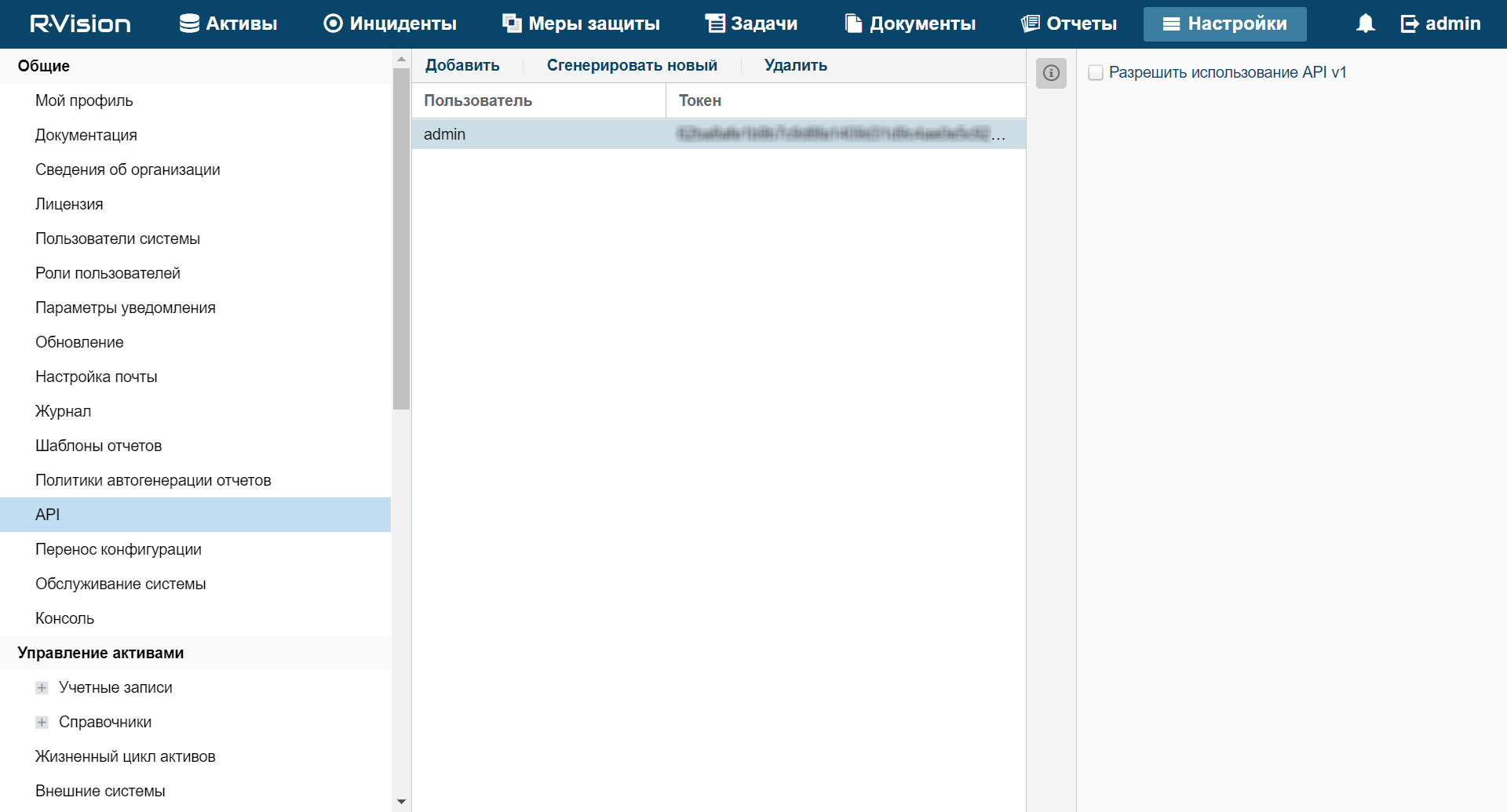

     API token in R-Vision IRP



• Configuring R-Vision IRP incident fields and KUMA alerts fields
  1. Add the ALERT_ID and ALERT_URL incident fields.
  2. Configure the category of R-Vision IRP incidents created based on KUMA alerts. You can do this in the R-Vision IRP web interface, in the Settings → Incident management → Incident categories section. Add a new incident category or edit an existing incident category by indicating the previously created Alert ID and Alert URL incident fields in the Category fields settings block. The Alert ID field can be hidden.

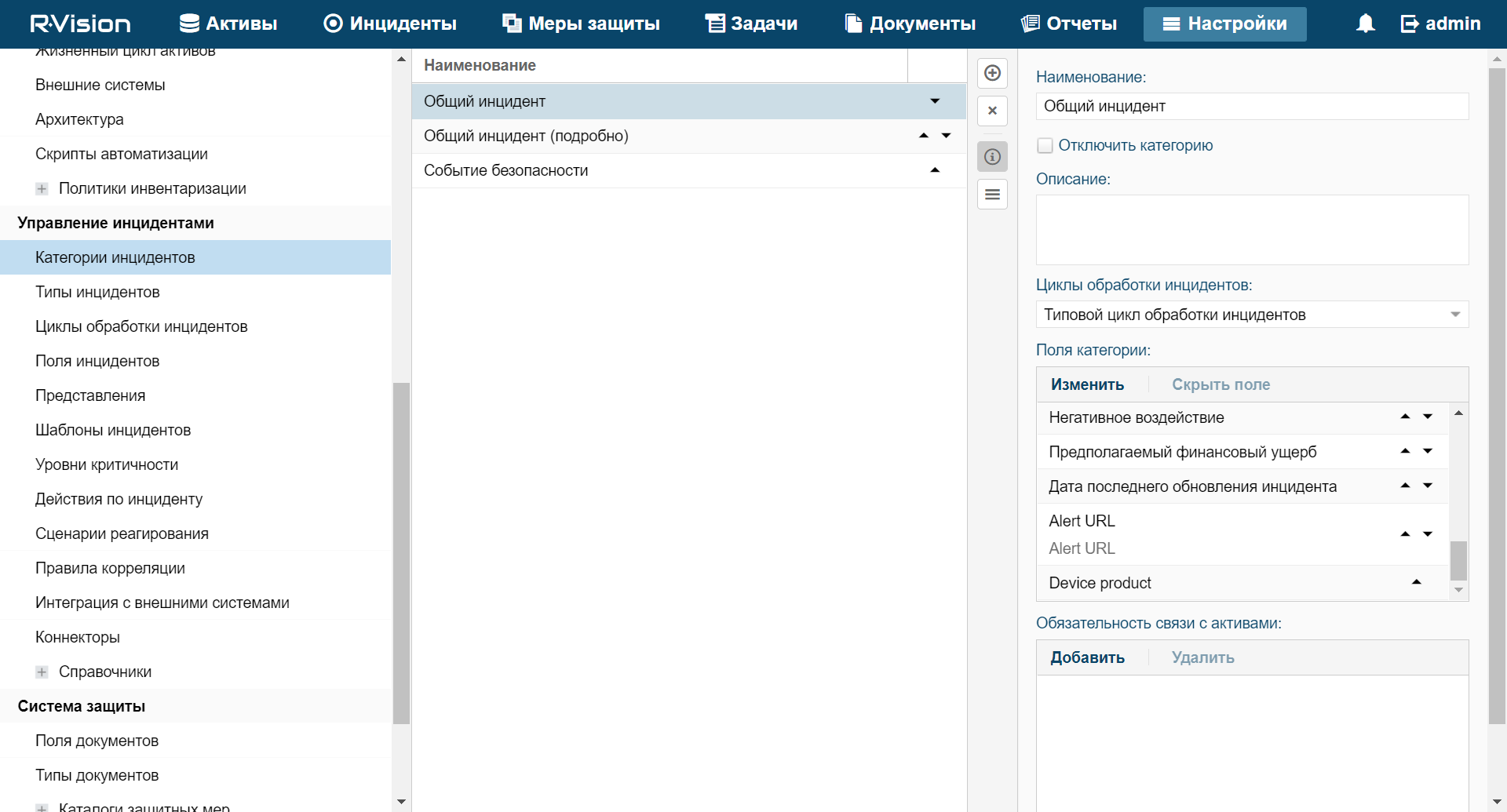

     Categories of incidents containing data from KUMA alerts



  3. Block editing of previously created Alert ID and Alert URL incident fields. In the R-Vision IRP web interface, under Settings → Incident management → Presentation, select the category of R-Vision IRP incidents that will be created based on KUMA alerts and put a lock icon next to the Alert ID and Alert URL incident fields.

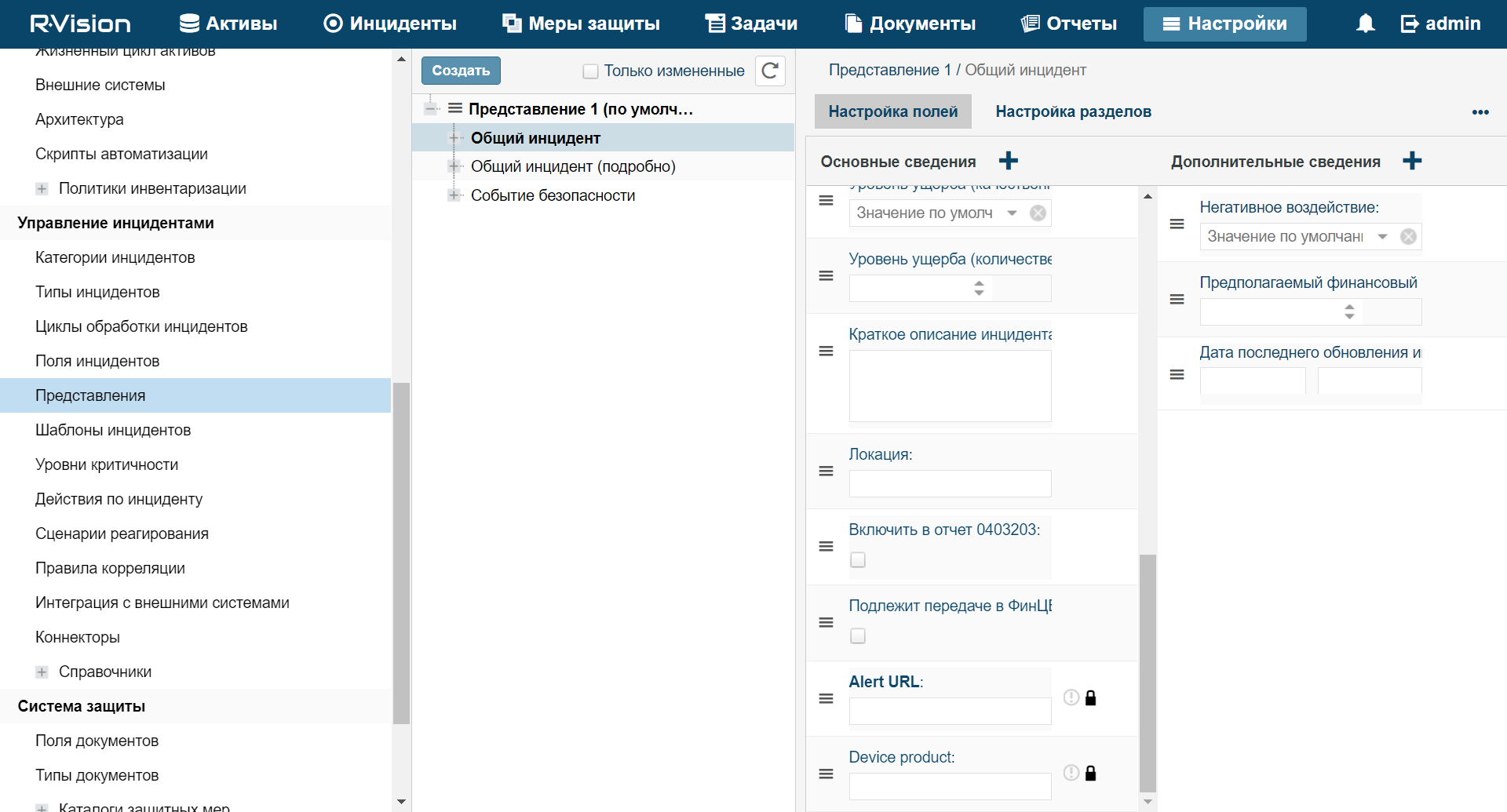

     Alert URL field unavailable for editing



• Creating R-Vision IRP collector and connector
  1. Create an R-Vision IRP collector to interact with KUMA.
  2. Create and configure an R-Vision IRP connector to send API requests to close KUMA alerts.
• Creating a rule to close a KUMA alert

  Create a rule for sending KUMA alert closing request when R-Vision IRP incident is closed.

In R-Vision IRP integration with KUMA is now configured. If integration is also configured in KUMA, when alerts appear in KUMA, information about those alerts will be sent to R-Vision IRP to create an incident. The Details on alert section in the KUMA web interface displays a link to R-Vision IRP.
