Kaspersky Unified Monitoring and Analysis Platform

Creating connector in R-Vision IRP

To create connector in R-Vision IRP:

1. In the R-Vision IRP web interface, under Settings → Incident management → Connectors, click the plus icon.
2. In the Type drop-down list, select REST.
3. Specify the connector name in the Name field (example: KUMA).
4. In the URL field type API request to close an alert in the format <KUMA Core server FQDN>:<Port used for API requests (7223 by default)>/api/v1/alerts/close.

   Example: https://kuma-example.com:7223/api/v1/alerts/close

5. In the Authorization type drop-down list, select Token.
6. In the Auth header field type Authorization.
7. In the Auth value field enter the token of KUMA user with general administrator role.

   The token of the KUMA general administrator can be obtained in the KUMA web interface under Settings → Users.

8. In the Collector drop-down list select previously created collector.
9. Click Save.

R-Vision IRP connector is created.

When connector is created you must configure sending API queries for closing alerts in KUMA.

To configure API queries in R-Vision IRP:

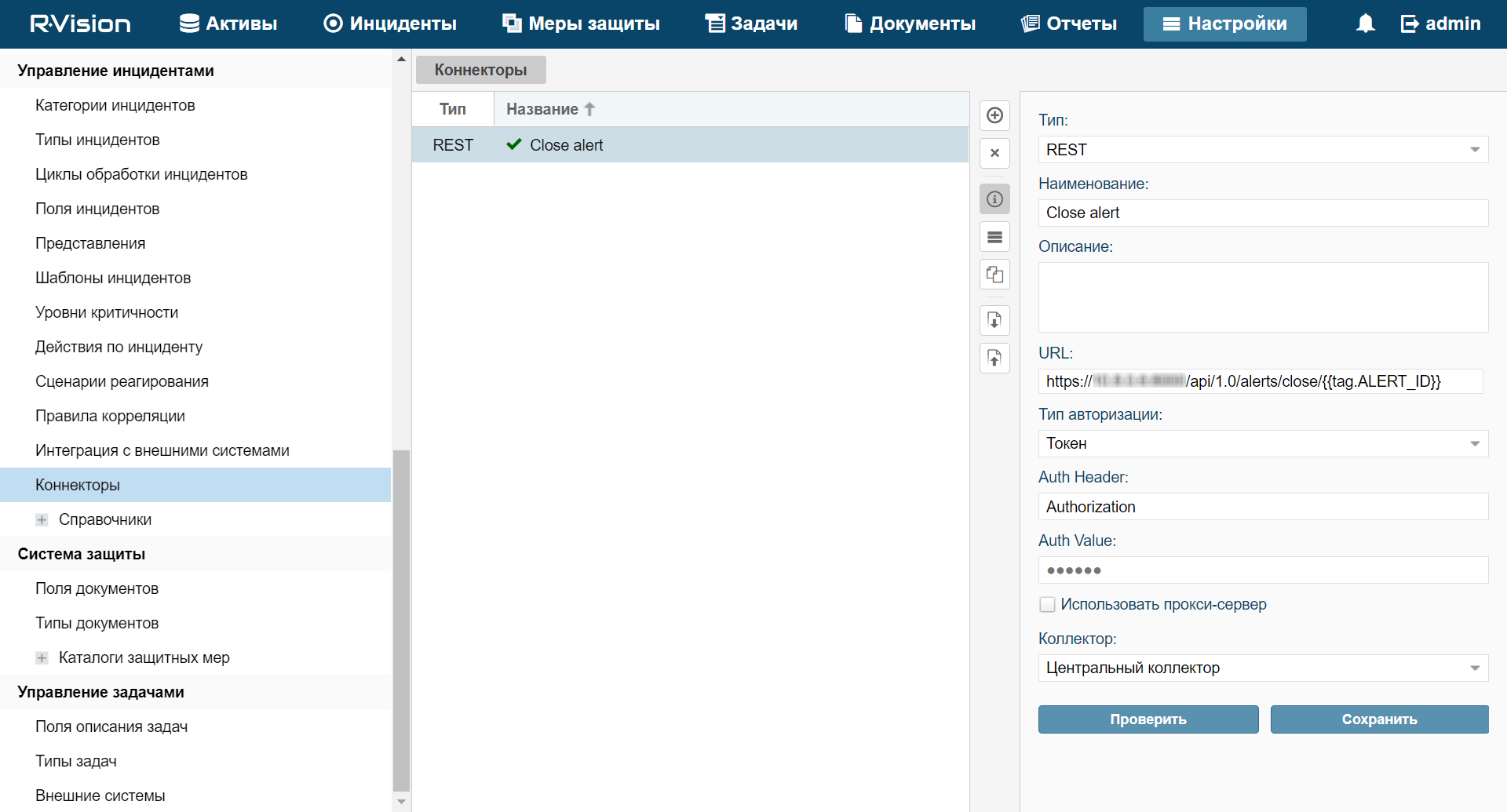

1. In the R-Vision IRP web interface, under Settings → Incident management → Connectors open for editing a newly created connector.
2. In the request type drop-down list, select POST.
3. In the Params field type API request to close an alert in the format <KUMA Core server FQDN>:<Port used for API requests (7223 by default)>/api/v1/alerts/close.

   Example: https://kuma-example.com:7223/api/v1/alerts/close

4. On the HEADERS tab add the following keys and values:
   • Key Content-Type; value: application/json.
   • Key Authorization; value: Bearer <KUMA general administrator token>.

     The token of the KUMA general administrator can be obtained in the KUMA web interface under Settings → Users.

5. On the BODY → Raw tab type contents of the API request body:

   {

       "id":"{{tag.ALERT_ID}}"

       “Reason”:”<comment to add to KUMA alert when it is closed. For example, "Responded to alert from R-Vision">"

   }

6. Click Save.

R-Vision IRP connector is configured.
